Features:

  • Fully automatic
  • Quick-release blade system
  • Height-adjustable outfeed stacker
  • 7" color touchscreen
  • Up to 8,500 sheets per hour
  • Up to 16 creases per sheet
  • Bottom-suction air feed table
  • Sheets up to 35" x 13"
  • Cross/part perforation kit (optional)



In today’s digital print environment, it’s not enough to simply print a piece; it must be finished properly for a clean, professional look. The Atlas C102 Auto-Feeding Creaser/Perforator is a fully-automatic, user-friendly solution to solve the problem of cracking in toner-based digital prints. Utilizing a unique creasing matrix, it compresses paper fibers instead of cutting them, virtually eliminating cracks on a creased or folded edge.



The quick-release blade system makes it easy to swap between creasing and perforating blades and requires no tools. It features variable creasing depth, which can be adjusted using a simple sliding lever, to accommodate different paper weights.



An extended infeed deck now accommodates sheets up to 35” L x 13” W. The height-adjustable outfeed stacker can be moved to match the paper stack height and keeps processed sheets neatly organized for quick and easy removal.

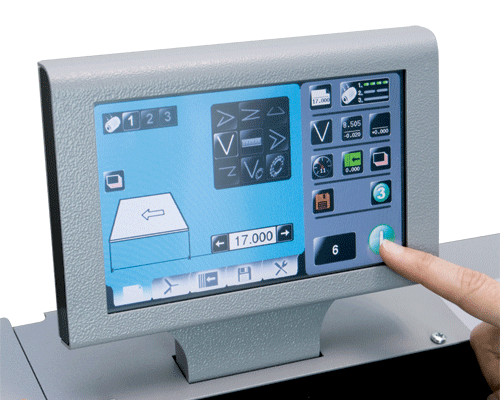

Using the graphics-based 7” touchscreen control panel, operators can easily set-up and save jobs in just minutes or use one of the six pre-programmed settings. The C102 automatically calculates the crease positions based on paper size and sets them accordingly. The powerful bottom-suction air-feed system allows for continuous loading of sheets, which increases productivity while maintaining accuracy, even with heavier stocks.



This fully-automatic air-feed creaser offers variable speed control to accommodate a wide variety of sheet sizes and thicknesses. With the ability to produce up to 16 creases per sheet, it can process up to 8,500 sheets (8.5” x 11”) or up to 11,000 sheets (6.5” x 8.5”) per hour. Perforating capabilities are also standard, with a wide range of perf wheels to suit many different applications.



Options include a cross and part perforation kit, narrow sheet guide, narrow creasing matrix, and a variety of perforating wheels in fine and coarse teeth configurations.



With rugged metal construction and a compact footprint, the Atlas C102 is an ideal addition to small print shops and production facilities with limited space that want to expand their digital print finishing capabilities.



Special Pricing Available! Please call for more details! 262-675-0855

Formax Atlas C102 High-Speed Automatic Creaser

$0.00Price
